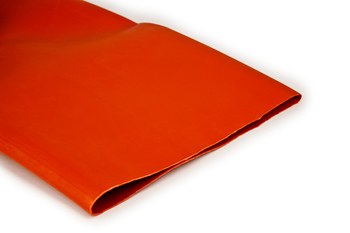

3M BBI5ARD50' Heat Shrink Tubing - Orange / Red - 50 ft - 35731
051135-35731
The 3M orange / red polyolefin heat shrink tubing is sold 50 ft per case and is another quality product from 3M. This product is made of polyolefin for performance and durability. Has a dielectric strength of 550 v/mil. This product starts out with an inner diameter of 0.114 in and after heat is applied it reduces in size to 0.043 in. Along with other changes the wall thickness also changes when this product is used. Before use the wall thickness is 0.043 in but after it is 0.114 in. The overall length measures 50 ft. This heat shrink tubing meets the following standards: ANSI/IEEE C 37.20, ASTM D 149, ASTM D 150, ASTM D 2303, ASTM D 257, IEC 216.
Product Specifications
- Brand:3M
- 3M Number:BBI5ARD50'
- Material:Polyolefin
- Shrink Ratio:Variable
- Inner Diameter Before Shrinking:0.114 in
- Inner Diameter After Shrinking:0.043 in
- Wall Thickness After Shrinking:0.114 in
- Wall Thickness Before Shrinking:0.043 in
- Overall Length:50 ft
- Dielectric Strength:550 V/mil
- Color:Orange / Red
- Shrink Temperature:+250 °F
- Maximum Operating Temperature:+230 °F
- Standards Met:ANSI/IEEE C 37.20; ASTM D 149; ASTM D 150; ASTM D 2303; ASTM D 257; IEC 216
- Package Quantity:50 ft per case
- Kit Type:0.043
