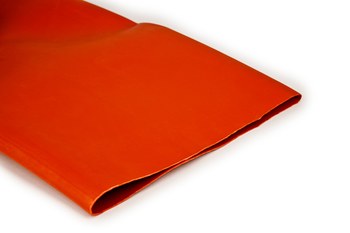

3M BBI8ARD20' Heat Shrink Tubing - Orange / Red - 20 ft - 35736
051135-35736
The 3M orange / red polyolefin heat shrink tubing is sold 20 ft per case and is another quality product from 3M. This product is made of polyolefin for performance and durability. Has a dielectric strength of 550 v/mil. This product starts out with an inner diameter of 16.43 in and after heat is applied it reduces in size to 10.29 in. Along with other changes the wall thickness also changes when this product is used. Before use the wall thickness is 0.049 in but after it is 0.128 in. The overall length measures 20 ft. This heat shrink tubing meets the following standards: ANSI/IEEE C 37.20, ASTM D 149, ASTM D 150, ASTM D 2303, ASTM D 257, IEC 216.
Product Specifications
- Brand:3M
- 3M Number:BBI8ARD20'
- Material:Polyolefin
- Shrink Ratio:1.5 : 1
- Inner Diameter Before Shrinking:16.43 in
- Inner Diameter After Shrinking:10.29 in
- Wall Thickness After Shrinking:0.128 in
- Wall Thickness Before Shrinking:0.049 in
- Overall Length:20 ft
- Dielectric Strength:550 V/mil
- Color:Orange / Red
- Shrink Temperature:+250 °F
- Maximum Operating Temperature:+230 °F
- Standards Met:ANSI/IEEE C 37.20; ASTM D 149; ASTM D 150; ASTM D 2303; ASTM D 257; IEC 216
- Package Quantity:20 ft per case
- Kit Type:10.29
