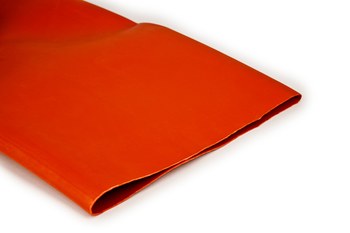

3M BBI9ARD20' Heat Shrink Tubing - Orange / Red - 20 ft - 35876
051135-35876
The 3M orange / red polyolefin heat shrink tubing is sold 20 ft per case and is another quality product from 3M. This sku is made of polyolefin for performance and durability. Has a dielectric strength of 550 v/mil. This product starts out with an inner diameter of 0.127 in and after heat is applied it reduces in size to 0.054 in. Along with other changes the wall thickness also changes when this product is used. Before use the wall thickness is 0.054 in but after it is 0.127 in. The overall length measures 20 ft. This heat shrink tubing meets the following standards: ANSI/IEEE C 37.20, ASTM D 149, ASTM D 150, ASTM D 2303, ASTM D 257, IEC 216.
Product Specifications
- Brand:3M
- 3M Number:BBI9ARD20'
- Material:Polyolefin
- Shrink Ratio:Variable
- Inner Diameter Before Shrinking:0.127 in
- Inner Diameter After Shrinking:0.054 in
- Wall Thickness After Shrinking:0.127 in
- Wall Thickness Before Shrinking:0.054 in
- Overall Length:20 ft
- Dielectric Strength:550 V/mil
- Color:Orange / Red
- Shrink Temperature:+250 °F
- Maximum Operating Temperature:+230 °F
- Standards Met:ANSI/IEEE C 37.20; ASTM D 149; ASTM D 150; ASTM D 2303; ASTM D 257; IEC 216
- Package Quantity:20 ft per case
- Kit Type:0.054
