3M BBI9ARD50' Heat Shrink Tubing - Orange / Red - 50 ft - 35877
051135-35877

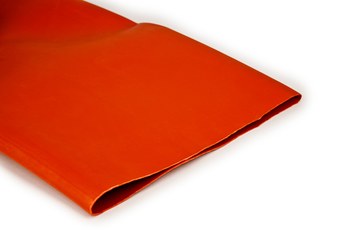

The 3M orange / red polyolefin heat shrink tubing is sold 50 ft per case and is another quality product from 3M. This product is made of polyolefin for performance and durability. Has a dielectric strength of 550 v/mil. This product starts out with an inner diameter of 3.78 in and after heat is applied it reduces in size to 0.128 in. Along with other changes the wall thickness also changes when this product is used. Before use the wall thickness is 0.054 in but after it is 0.127 in. The overall length measures 50 ft. This heat shrink tubing meets the following standards: ANSI/IEEE C 37.20, ASTM D 149, ASTM D 150, ASTM D 2303, ASTM D 257, IEC 216.
Product Specifications
- Brand:3M
- 3M Number:BBI9ARD50'
- Material:Polyolefin
- Shrink Ratio:Variable
- Inner Diameter Before Shrinking:3.78 in
- Inner Diameter After Shrinking:0.128 in
- Wall Thickness After Shrinking:0.127 in
- Wall Thickness Before Shrinking:0.054 in
- Overall Length:50 ft
- Dielectric Strength:550 V/mil
- Color:Orange / Red
- Shrink Temperature:+250 °F
- Maximum Operating Temperature:+230 °F
- Standards Met:ANSI/IEEE C 37.20; ASTM D 149; ASTM D 150; ASTM D 2303; ASTM D 257; IEC 216
- Package Quantity:50 ft per case
- Kit Type:0.128
