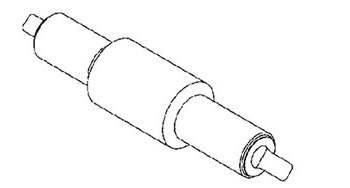

3M CI-2A Aluminum Barrel Connector - 2 in Length - 0.91 in Outside Diameter - 00721
054007-00721
The 3M aluminum barrel connector is sold 10 per pack and is another quality product from 3M. Keep in mind this is a "standard" barrel length. The barrel connector is compatible with aluminum, copper conductors. The maximum supported wire size is 1 (solid) awg, 2 (stranded) awg. The overall length measures 2 in. This barrel connector meets the following standards: ANSI C119.4.
Product Specifications
- Brand:3M
- 3M Number:CI-2A
- Barrel Length Type:Standard
- Maximum Wire Size:1 (Solid) AWG; 2 (Stranded) AWG
- Connector Material:Aluminum
- Voltage Rating:35 kV
- Compatible Conductor Materials:Aluminum; Copper
- Outside Diameter:0.91 in
- Overall Length:2 in
- Standards Met:ANSI C119.4
- Package Quantity:10 per pack
