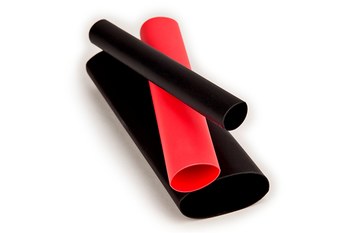

3M E30.500BK6"P Heat Shrink Thin-Wall Flexible Polyolefin Adhesive-Lined Tubing - Black - 6 in - 60062
051128-60062
The 3M black adhesive-lined polyolefin heat shrink thin-wall flexible polyolefin adhesive-lined tubing is sold 10 packs per case and is another quality product from 3M. This item is made of polyolefin for performance and durability. Has a dielectric strength of 700 v/mil. Provides a tensile strength of 2100 psi to provide the holding power you need. This product starts out with an inner diameter of 0.5 in and after heat is applied it reduces in size to 0.16 in. Along with other changes the wall thickness also changes when this product is used. After use the wall thickness is 0.07 in. The overall length measures 6 in. This heat shrink thin-wall flexible polyolefin adhesive-lined tubing meets the following standards: CSA LR38227, UL E157227.
Product Specifications
- Brand:3M
- 3M Number:E30.500BK6"P
- Material:Polyolefin
- Shrink Ratio:3:1
- Inner Diameter Before Shrinking:0.5 in
- Inner Diameter After Shrinking:0.16 in
- Lining:Adhesive-Lined
- Wall Thickness After Shrinking:0.07 in
- Overall Length:6 in
- Dielectric Strength:700 V/mil
- Color:Black
- Shrink Temperature:+250 °F
- Maximum Operating Temperature:+230 °F
- Standards Met:CSA LR38227; UL E157227
- Package Quantity:10 pieces per pack, 10 packs per case
- Kit Type:0.16
- Tensile Strength:2100 psi
