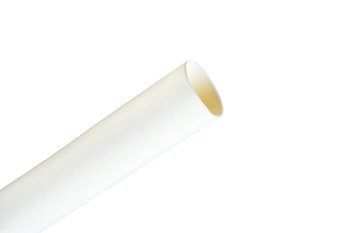

3M FP-301 Heat Shrink Thin-Wall Tubing - White - 100 ft - 35587


The 3M white polyolefin heat shrink thin-wall tubing is sold 300 ft per case and is another quality product from 3M. This item is made of polyolefin for performance and durability. Has a dielectric strength of 900 v/mil. This product starts out with an inner diameter of 0.5 in and after heat is applied it reduces in size to 0.25 in. Along with other changes the wall thickness also changes when this product is used. After use the wall thickness is 0.025 in. The overall length measures 100 ft. This heat shrink thin-wall tubing meets the following standards: AMS 3636, AMS 3637, AMS DTL-23053/5 Class 1, AMS DTL-23053/5 Class 2, CSA LR38227, UL E39100.

View technical details

Product Specifications

  • Brand:
  • 3M Number:
  • Material:
  • Shrink Ratio:
  • Inner Diameter Before Shrinking:
    0.5 in
  • Inner Diameter After Shrinking:
    0.25 in
  • Wall Thickness After Shrinking:
    0.025 in
  • Overall Length:
    100 ft
  • Dielectric Strength:
    900 V/mil
  • Color:
  • Shrink Temperature:
    +212 °F
  • Maximum Operating Temperature:
    +275 °F
  • Standards Met:
    AMS 3636 AMS 3637 AMS DTL-23053/5 Class 1 AMS DTL-23053/5 Class 2 CSA LR38227 UL E39100
  • Package Quantity:
    300 ft per case
