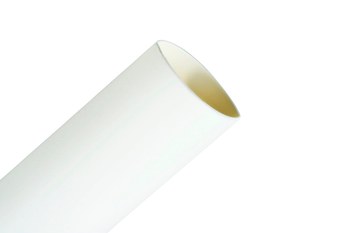

3M FP-301 Heat Shrink Thin-Wall Tubing - White - 48 in - 59593
051128-59593
The 3M white polyolefin heat shrink thin-wall tubing is sold 12 pieces per case and is another quality product from 3M. This product is made of polyolefin for performance and durability. Has a dielectric strength of 900 v/mil. This product starts out with an inner diameter of 0.5 in and after heat is applied it reduces in size to 0.25 in. Along with other changes the wall thickness also changes when this product is used. After use the wall thickness is 0.025 in. The overall length measures 48 in. This heat shrink thin-wall tubing meets the following standards: AMS 3636, AMS 3637, AMS DTL-23053/5 Class 1, AMS DTL-23053/5 Class 2, CSA LR38227, UL E39100.
Product Specifications
- Brand:3M
- 3M Number:FP-301
- Material:Polyolefin
- Shrink Ratio:2:1
- Inner Diameter Before Shrinking:0.5 in
- Inner Diameter After Shrinking:0.25 in
- Wall Thickness After Shrinking:0.025 in
- Overall Length:48 in
- Dielectric Strength:900 V/mil
- Color:White
- Shrink Temperature:+212 °F
- Maximum Operating Temperature:+275 °F
- Standards Met:AMS 3636; AMS 3637; AMS DTL-23053/5 Class 1; AMS DTL-23053/5 Class 2; CSA LR38227; UL E39100
- Package Quantity:12 pieces per case
