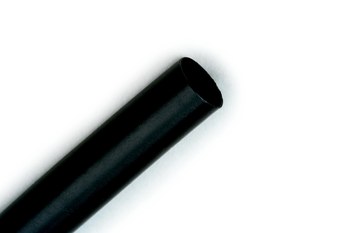

3M FP0.063BK6"P Heat Shrink Thin-Wall Tubing - Black - 6 in - 60110
051128-60110
The 3M black polyolefin heat shrink thin-wall tubing is sold 10 packs per carton and is another quality product from 3M. This product is made of polyolefin for performance and durability. Has a dielectric strength of 900 v/mil. This product starts out with an inner diameter of 0.063 in and after heat is applied it reduces in size to 0.031 in. Along with other changes the wall thickness also changes when this product is used. After use the wall thickness is 0.017 in. The overall length measures 6 in. This heat shrink thin-wall tubing meets the following standards: AMS 3636, AMS 3637, AMS DTL-23053/5 Class 1, AMS DTL-23053/5 Class 2, CSA LR38227, UL E39100.
Product Specifications
- Brand:3M
- 3M Number:FP0.063BK6"P
- Material:Polyolefin
- Shrink Ratio:2:1
- Inner Diameter Before Shrinking:0.063 in
- Inner Diameter After Shrinking:0.031 in
- Wall Thickness After Shrinking:0.017 in
- Overall Length:6 in
- Dielectric Strength:900 V/mil
- Color:Black
- Shrink Temperature:+212 °F
- Maximum Operating Temperature:+275 °F
- Standards Met:AMS 3636; AMS 3637; AMS DTL-23053/5 Class 1; AMS DTL-23053/5 Class 2; CSA LR38227; UL E39100
- Package Quantity:10 pieces per pack, 10 packs per carton
- Kit Type:0.031
