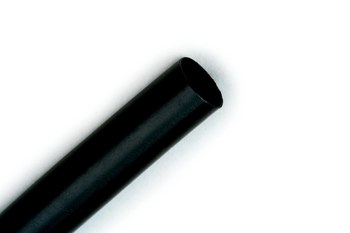

3M FP0.188BK48"S Heat Shrink Thin-Wall Tubing - Black - 48 in - 59570
051128-59570
The 3M black polyolefin heat shrink thin-wall tubing is sold 25 pieces per case and is another quality product from 3M. This item is made of polyolefin for performance and durability. Has a dielectric strength of 900 v/mil. Provides a tensile strength of 2400 psi to provide the holding power you need. This product starts out with an inner diameter of 0.187 in and after heat is applied it reduces in size to 0.093 in. Along with other changes the wall thickness also changes when this product is used. After use the wall thickness is 0.02 in. The overall length measures 48 in. This heat shrink thin-wall tubing meets the following standards: AMS 3636, AMS 3637, AMS DTL-23053/5 Class 1, AMS DTL-23053/5 Class 2, CSA LR38227, UL E39100.
Product Specifications
- Brand:3M
- 3M Number:FP0.188BK48"S
- Material:Polyolefin
- Shrink Ratio:2:1
- Inner Diameter Before Shrinking:0.187 in
- Inner Diameter After Shrinking:0.093 in
- Wall Thickness After Shrinking:0.02 in
- Overall Length:48 in
- Dielectric Strength:900 V/mil
- Color:Black
- Shrink Temperature:+212 °F
- Maximum Operating Temperature:+275 °F
- Standards Met:AMS 3636; AMS 3637; AMS DTL-23053/5 Class 1; AMS DTL-23053/5 Class 2; CSA LR38227; UL E39100
- Package Quantity:25 pieces per case
- Tensile Strength:2400 psi
