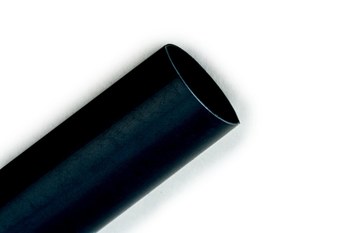

3M FP1.500BK6"P Heat Shrink Thin-Wall Tubing - Black - 6 in - 60132
051128-60132
The 3M black polyolefin heat shrink thin-wall tubing is sold 10 packs per case and is another quality product from 3M. This item is made of polyolefin for performance and durability. Has a dielectric strength of 900 v/mil. This product starts out with an inner diameter of 1.5 in and after heat is applied it reduces in size to 0.75 in. Along with other changes the wall thickness also changes when this product is used. After use the wall thickness is 0.04 in. The overall length measures 6 in. This heat shrink thin-wall tubing meets the following standards: AMS 3636, AMS 3637, AMS DTL-23053/5 Class 1, AMS DTL-23053/5 Class 2, CSA LR38227, UL E39100.
Product Specifications
- Brand:3M
- 3M Number:FP1.500BK6"P
- Material:Polyolefin
- Shrink Ratio:2:1
- Inner Diameter Before Shrinking:1.5 in
- Inner Diameter After Shrinking:0.75 in
- Wall Thickness After Shrinking:0.04 in
- Overall Length:6 in
- Dielectric Strength:900 V/mil
- Color:Black
- Shrink Temperature:+212 °F
- Maximum Operating Temperature:+275 °F
- Standards Met:AMS 3636; AMS 3637; AMS DTL-23053/5 Class 1; AMS DTL-23053/5 Class 2; CSA LR38227; UL E39100
- Package Quantity:3 pieces per pack, 10 packs per case
- Kit Type:0.75
