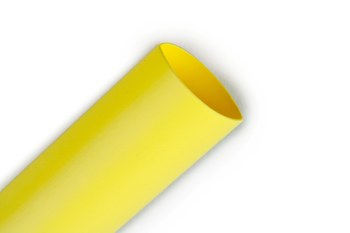

3M FP1.500YL100'L Heat Shrink Thin-Wall Tubing - Yellow - 100 ft - 08516
054007-08516
The 3M yellow polyolefin heat shrink thin-wall tubing is sold 200 ft per carton and is another quality product from 3M. This product is made of polyolefin for performance and durability. Has a dielectric strength of 900 v/mil. Provides a tensile strength of 2400 psi to provide the holding power you need. This product starts out with an inner diameter of 1.5 in and after heat is applied it reduces in size to 0.75 in. Along with other changes the wall thickness also changes when this product is used. After use the wall thickness is 0.04 in. The overall length measures 100 ft. This heat shrink thin-wall tubing meets the following standards: AMS 3636, AMS 3637, AMS DTL-23053/5 Class 1, AMS DTL-23053/5 Class 2, CSA LR38227, UL E39100.
Product Specifications
- Brand:3M
- 3M Number:FP1.500YL100'L
- Material:Polyolefin
- Shrink Ratio:2:1
- Inner Diameter Before Shrinking:1.5 in
- Inner Diameter After Shrinking:0.75 in
- Wall Thickness After Shrinking:0.04 in
- Overall Length:100 ft
- Dielectric Strength:900 V/mil
- Color:Yellow
- Shrink Temperature:+212 °F
- Maximum Operating Temperature:+275 °F
- Standards Met:AMS 3636; AMS 3637; AMS DTL-23053/5 Class 1; AMS DTL-23053/5 Class 2; CSA LR38227; UL E39100
- Package Quantity:200 ft per carton
- Kit Type:0.75
- Tensile Strength:2400 psi
