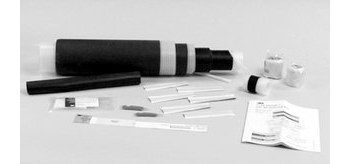

Picture of 3M QS-III - 5514A-1T-PILC Transition Splice Kit (Main product image)

3M QS-III 5514A-1T-PILC Black Rubber Transition Splice Kit - Compatible with Aluminum, Copper Cable - 94340

051138-94340

Picture of 3M QS-III - 5514A-1T-PILC Transition Splice Kit (Main product image)

The 3M QS-III black rubber transition splice kit is sold 1 per case and is another quality product from 3M. It's designed and manufactured to be compatible with 4/0 awg to 500 kcmil wire sizes. Includes: 1181 - Copper Foil Shielding Tape, 2220 - Electrical Stress Control Tape, 2228 - Mastic Tape, 2230 - Mastic Strip, CC-3 - Cable Cleaning Pad, Cold Shrink Connector Adapter, Cold Shrink Jacket Tube, Cold Shrink Oil Stop Tube, Cold Shrink Semi-Conductive Tube, Cold Shrink Splice Body, Constant Force Spring, Grounding Braid, Instruction Booklet, P55/R Red Compound, Restricting Tape, Shield Connector, Shielding Sleeve. With this particular transition splice kit you can use with the cable insulation diameters that are between 0.79 in and 1.07 in. Works with connectors up to 5 in. Among all the other aspects of this product it offers the following resistant properties: heat-resistant, oil-resistant. This transition splice kit meets the following standards: ANSI C119.4, IEEE 404.

View technical details

Product Specifications

  • Brand:
    3M
  • Trade Name:
    QS-III
  • 3M Number:
    5514A-1T-PILC
  • Compatible Wire Sizes:
    4/0 AWG to 500 kcmil
  • Splice Material:
    Rubber
  • Voltage Rating:
    15 kV
  • Compatible Cable Materials:
    Aluminum Copper
  • Maximum Cable Insulation Outer Diameter:
    1.07 in
  • Minimum Cable Insulation Outer Diameter:
    0.79 in
  • Maximum Connector Length:
    5 in
  • Includes:
    1181 - Copper Foil Shielding Tape 2220 - Electrical Stress Control Tape 2228 - Mastic Tape 2230 - Mastic Strip CC-3 - Cable Cleaning Pad Cold Shrink Connector Adapter Cold Shrink Jacket Tube Cold Shrink Oil Stop Tube Cold Shrink Semi-Conductive Tube Cold Shrink Splice Body Constant Force Spring Grounding Braid Instruction Booklet P55/R Red Compound Restricting Tape Shield Connector Shielding Sleeve
  • Resistant Properties:
    Heat-Resistant Oil-Resistant
  • Color:
    Black
  • Standards Met:
    ANSI C119.4 IEEE 404
  • Package Quantity:
    1 per case
  • Case Quantity:
    1 per case
