3M Scotchlok M10-6RX Yellow Brazed Non-Insulated Brazed Ring Terminal - 0.73 in Length - 0.38 in0.38 in Wide - 0.135 in Inside Diameter - #6 Stud - 58681
051128-58681
The 3M Scotchlok yellow brazed non-insulated brazed ring terminal is sold 500 per case and is another quality product from 3M. Can be used with conductor legs with a minimum diameter of 10 awg. The overall length and width are 0.73 in x 0.38 in.

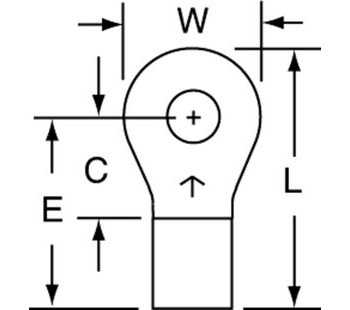

Product Specifications
- Brand:3M
- Trade Name:Scotchlok
- 3M Number:M10-6RX
- Seam Type:Brazed
- Stud Size:#6
- Color:Yellow
- Insulation Material:Non-Insulated
- Ring Width:0.38 in
- Inside Diameter:0.135 in
- Clearance:0.29 in
- Overall Length:0.73 in
- Package Quantity:50 per bottle, 500 per case
- Case Quantity:500 per case
- Inside Quantity:50 per bottle
- Minimum Conductor Leg Diameter:10 AWG
- Overall Width:0.38 in
