3M Scotchlok M8BCX Red Brazed Non-Insulated ETP Copper Brazed Butt Connector - Butt Connector - 0.81 in Length - 0.175 in Inside Diameter - 58727
051128-58727
The 3M Scotchlok red brazed non-insulated etp copper brazed butt connector is sold 200 per case and is another quality product from 3M. This product is made of etp copper for performance and durability. Keep in mind this is a "brazed" barrel length. The barrel itself is 0.38 in long. Supported wire sizes are 8 awg to 8 awg. The overall length measures 0.81 in.
Product Specifications
- Brand:3M
- Trade Name:Scotchlok
- 3M Number:M8BCX
- Seam Type:Brazed
- Maximum Wire Size:8 AWG
- Minimum Wire Size:8 AWG
- Color:Red
- Insulation Material:Non-Insulated
- Inside Diameter:0.175 in
- Barrel Length:0.38 in

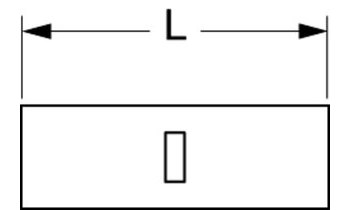

- Overall Length:0.81 in
- Package Quantity:10 per pack, 200 per case
- Barrel Length Type:Brazed
- Connector Type:Butt
- Material:ETP Copper
