3M Scotchlok MNG10BCMX-A Yellow Butted Nylon Butted Butt Connector - 1.23 in Length - 0.25 in Max Insulation Outside Diameter - 0.135 in Inside Diameter - 58995
051128-58995
The 3M Scotchlok yellow butted nylon butted butt connector is sold 500 per case and is another quality product from 3M. The barrel itself is 0.25 in long. Can be used with conductor legs with a minimum diameter of 12 awg. Supported wire sizes are 12 awg to 10 awg. The maximum outside diameter of the insulation this butted butt connector can work with is 0.25 in. The overall length measures 1.23 in.
Product Specifications
- Brand:3M
- Trade Name:Scotchlok
- 3M Number:MNG10BCMX-A
- Seam Type:Butted
- Maximum Wire Size:10 AWG
- Minimum Wire Size:12 AWG
- Color:Yellow
- Insulation Material:Nylon
- Maximum Insulation Outside Diameter:0.25 in
- Inside Diameter:0.135 in
- Barrel Length:0.25 in

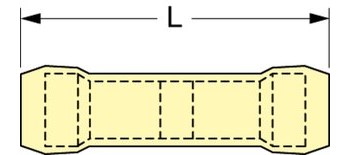

- Overall Length:1.23 in
- Package Quantity:50 per pack, 500 per case
- Minimum Conductor Leg Diameter:12 AWG
