Picture of 3M Scotchlok - MNG18-6FB/SX Butted Fork & Spade Terminal (Main product image)

3M Scotchlok MNG18-6FB/SX Red Locking Butted Nylon Butted Fork & Spade Terminal - 0.84 in Length - 0.25 in Fork Width - #6 Stud - 58951

051128-58951

Picture of 3M Scotchlok - MNG18-6FB/SX Butted Fork & Spade Terminal (Main product image)

The 3M Scotchlok red locking butted nylon butted fork & spade terminal is sold 500 per case and is another quality product from 3M. The insulation length on this butted fork & spade terminal is 0.69 in. Supported wire sizes are 22 awg to 18 awg. The overall length measures 0.84 in.

View technical details

Product Specifications

  • Brand:
    3M
  • Trade Name:
    Scotchlok
  • 3M Number:
    MNG18-6FB/SX
  • Fastening Mechanism:
    Locking
  • Seam Type:
    Butted
  • Maximum Wire Size:
    18 AWG
  • Minimum Wire Size:
    22 AWG
  • Stud Size:
    #6
  • Color:
    Red
  • Insulation Material:
    Nylon

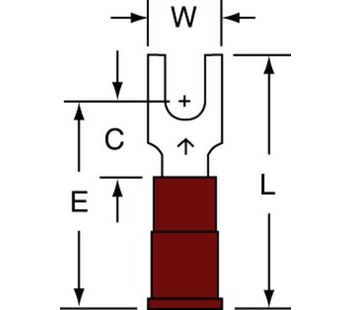

  • Fork Width:
    0.25 in
  • Clearance:
    0.25 in
  • Insulation Length:
    0.69 in
  • Overall Length:
    0.84 in
  • Package Quantity:
    100 per bottle, 500 per case
  • Barrel Length Type:
    Butted
  • Inside Diameter:
    0.07 in
  • Material:
    Plastic
  • Maximum Insulation Outside Diameter:
    0.145 in
  • Maximum Operating Temperature:
    221 °F
  • Minimum Conductor Leg Diameter:
    22 AWG
  • Overall Width:
    0.25 in

Hide technical details
