3M Scotchlok MU10BCX Yellow Butted Non-Insulated Butted Butt Connector - 0.56 in Length - 0.132 in Inside Diameter - 59008
051128-59008
The 3M Scotchlok yellow butted non-insulated butted butt connector is sold 500 per case and is another quality product from 3M. The barrel itself is 0.25 in long. Can be used with conductor legs with a minimum diameter of 12 awg. Supported wire sizes are 12 awg to 10 awg. The overall length measures 0.56 in.
Product Specifications
- Brand:3M
- Trade Name:Scotchlok
- 3M Number:MU10BCX
- Seam Type:Butted
- Maximum Wire Size:10 AWG
- Minimum Wire Size:12 AWG
- Color:Yellow
- Insulation Material:Non-Insulated
- Inside Diameter:0.132 in
- Barrel Length:0.25 in

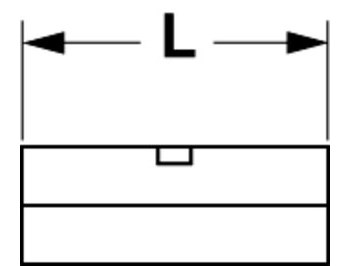

- Overall Length:0.56 in
- Package Quantity:50 per pack, 500 per case
- Minimum Conductor Leg Diameter:12 AWG
