3M Scotchlok MU14BCHTX Blue Butted Non-Insulated Butted Butt Connector - 0.56 in Length - 0.09 in Inside Diameter - 58977
051128-58977
The 3M Scotchlok blue butted non-insulated butted butt connector is sold 500 per case and is another quality product from 3M. The barrel itself is 0.25 in long. Can be used with conductor legs with a minimum diameter of 16 awg. Supported wire sizes are 16 awg to 14 awg. The overall length measures 0.56 in.
Product Specifications
- Brand:3M
- Trade Name:Scotchlok
- 3M Number:MU14BCHTX
- Seam Type:Butted
- Maximum Wire Size:14 AWG
- Minimum Wire Size:16 AWG
- Color:Blue
- Insulation Material:Non-Insulated
- Inside Diameter:0.09 in
- Barrel Length:0.25 in

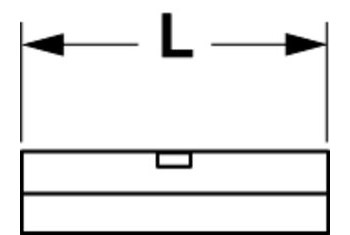

- Overall Length:0.56 in
- Package Quantity:100 per pack, 500 per case
- Minimum Conductor Leg Diameter:16 AWG
