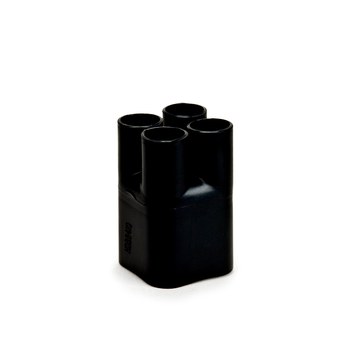

3M HDBB-430-1-250 Heavy Duty Breakout Boot - Black - Heat Shrink - 58798
054007-58798
The 3M black fr polyolefin heavy duty breakout boot is sold 1 per case and is another quality product from 3M. This item is made of fr polyolefin for performance and durability. Supports 4 cables. Has a minimum and maximum cable entry diameter. These values are 3 in to 5.25 in. Works with conductor legs within a certain diameter range: The range for this product is 0.55 in to 1.35 in. This product starts out with an inner diameter of 1.35 in and after heat is applied it reduces in size to 0.55 in. The overall length measures 9 in. This heavy duty breakout boot meets the following standards: DOD STD 2003 1 IA62-17.
Product Specifications
- Brand:3M
- 3M Number:HDBB-430-1-250
- Cable Count:4
- Shrink Type:Heat Shrink
- Maximum Cable Entry Diameter:5.25 in
- Minimum Cable Entry Diameter:3 in
- Maximum Conductor Leg Diameter:1.35 in
- Minimum Conductor Leg Diameter:0.55 in
- Overall Length:9 in
- Standards Met:DOD STD 2003 1 IA62-17
- Package Quantity:1 per case
- Color:Black
- Indoor or Outdoor:Indoor/Outdoor
- Inner Diameter After Shrinking:0.55 in
- Inner Diameter Before Shrinking:1.35 in
- Material:FR Polyolefin
