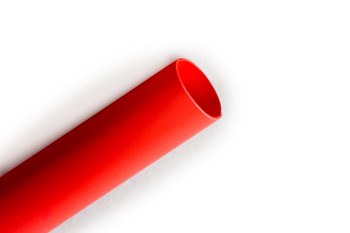

3M HDT0.300RD48" Heat Shrink Tubing - Red - 48 in - 37043
051135-37043
The 3M red adhesive-lined polyolefin heat shrink tubing is sold 20 pieces per carton and is another quality product from 3M. This sku is made of polyolefin for performance and durability. Has a dielectric strength of 500 v/mil. This product starts out with an inner diameter of 0.3 in and after heat is applied it reduces in size to 0.1 in. Along with other changes the wall thickness also changes when this product is used. After use the wall thickness is 0.08 in. The overall length measures 48 in. This heat shrink tubing meets the following standards: AMS DTL-23053/15 Class 1, MIL DTL-23053, MIL DTL-23058.
Product Specifications
- Brand:3M
- 3M Number:HDT0.300RD48"
- Material:Polyolefin
- Shrink Ratio:3:1
- Inner Diameter Before Shrinking:0.3 in
- Inner Diameter After Shrinking:0.1 in
- Lining:Adhesive-Lined
- Wall Thickness After Shrinking:0.08 in
- Overall Length:48 in
- Dielectric Strength:500 V/mil
- Color:Red
- Shrink Temperature:+250 °F
- Maximum Operating Temperature:+230 °F
- Standards Met:AMS DTL-23053/15 Class 1; MIL DTL-23053; MIL DTL-23058
- Package Quantity:20 pieces per carton
- Kit Type:0.1
