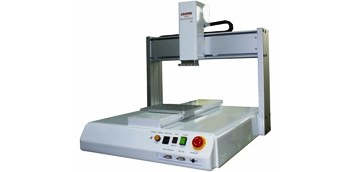

Loctite 400 Light Curing Adhesive Dispenser - 98796, IDH: 1452396

Product Specifications

• Brand:
  Loctite
• Series:
  400
• Model Number:
  400
• Type:
  Benchtop
• Number of Controllable Axes:
  3
• Workspace Length:
  400mm
• Workspace Width:
  400 mm
• Workspace Depth:
  100 mm
• Portable Tool Head Weight Limitations:
  5 kg
• Portable Work Surface Weight Limitations:
  10 kg
• Maximum Speed (PTP, X,Y Axis):
  600 mm/sec
• Maximum Speed (PTP, Z Axis):
  320 mm/sec
• Repeatability Accuracy (X,Y,Z Axis):
  ±0.01 mm
• CPU:
  32-Bit
• Control Method:
  Continuous Path; Point-to-Point
• Drive Method:
  3-Phase Stepping Motor
• I/O:
  16
• Program Capacity:
  100
• Data Memory Capacity:
  4000 points
• Voltage Rating:
  95-132 V ac
• Working Environment - Temperature:
  +32 to +108 °F
• Working Environment - Humidity:
  20 to 90 % RH
• IDH Number:
  1452396
