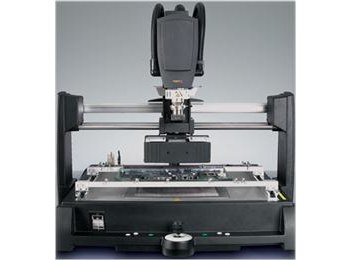

Metcal APR Rework Station - APR-5000-XLS
METCAL APR-5000-XLS
The Metcal APR 5100 w rework station is another quality product from Metcal. Provides an output wattage of 5100 w. Provides 8 to 24 l/min of air. Input voltage needs to be 220 v ac. Additional, and potentially important, information was collected about this product: Special Features: Split Vision
Product Specifications
- Brand:Metcal
- Series:APR
- Station Type:Rework Station
- Output Wattage:5100 W
- Input Voltage:220 V ac
- Maximum Operating Temperature:+662 (Pre-Heater) °F; +752 (Reflow Head) °F
- Included Stand & Accessories:(5) x APR-TC5 - Multi-Color Fine Gauge Thermocouples; (8) x FSS-APR - PCB Support Finger Short; 19782 - Adjustable BGA Centering Nest; 20534 - Squeegee Blade Holder for Printing; 20987 - Adjustable CSP Centering Nest; 35 mm Pre-Heater Nozzle; 45 mm Pre-Heater Nozzle; 50 mm Pre-Heater Nozzle; Base; SOFT-APR-5000-XL - Installation Software; UBS-APR-XL - Under Board Support; VNZ-005 - Vacuum Pick-Up Nozzle 0.5 mm O/D; VNZ-01 - Vacuum Pick-Up Nozzle 1 mm O/D; VNZ-03 - Vacuum Pick-Up Nozzle 3 mm O/D; VNZ-05 - Vacuum Pick-Up Nozzle 5 mm O/D; VNZ-08 - Vacuum Pick-Up Nozzle 8 mm O/D; VNZ-12 - Vacuum Pick-Up Nozzle 12 mm O/D; VNZ-19 - Vacuum Pick-Up Nozzle 19 mm O/D
- Airflow:8 to 24 L/min
- Additional Information:Special Features: Split Vision
