3M Scotchlok MN6-38RK Blue Brazed Nylon Brazed Ring Terminal - 1.58 in Length - 0.63 in0.63 in Wide - 0.25 in Inside Diameter - 3/8 in Stud - 08275
054007-08275
The 3M Scotchlok blue brazed nylon brazed ring terminal is another quality product from 3M. The insulation length on this brazed ring terminal is 1.27 in. Can be used with conductor legs with a minimum diameter of 6 awg. The overall length and width are 1.58 in x 0.63 in.
Product Specifications
- Brand:3M
- Trade Name:Scotchlok
- 3M Number:MN6-38RK
- Seam Type:Brazed
- Stud Size:3/8 in
- Color:Blue
- Insulation Material:Nylon

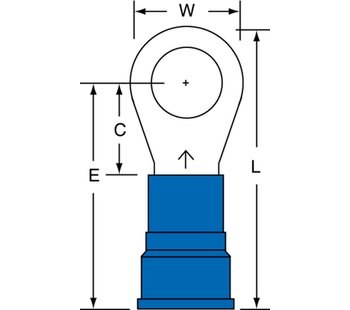

- Ring Width:0.63 in
- Inside Diameter:0.25 in
- Clearance:0.52 in
- Insulation Length:1.27 in
- Overall Length:1.58 in
- Maximum Operating Temperature:105 ˚C
- Minimum Conductor Leg Diameter:6 AWG
- Overall Width:0.63 in
