3M Scotchlok MNG14-187DFX Blue Butted Nylon Butted Quick-Disconnect Terminal - 0.77 in Length - 0.145 in Max Insulation Outside Diameter - 0.085 in Inside Diameter - 58672
051128-58672
The 3M Scotchlok blue butted nylon butted quick-disconnect terminal is sold 500 per case and is another quality product from 3M. Keep in mind this is a "butted" barrel length. Tab width measures 0.250 in. Can be used with conductor legs with a minimum diameter of 16 awg. The maximum diameter of the cable insulation is 0.145 in. Supported wire sizes are 16 awg to 14 awg. The maximum outside diameter of the insulation this butted quick-disconnect terminal can work with is 0.145 in. The overall length measures 0.77 in.
Product Specifications
- Brand:3M
- Trade Name:Scotchlok
- 3M Number:MNG14-187DFX
- Maximum Wire Size:14 AWG
- Minimum Wire Size:16 AWG
- Seam Type:Butted
- Color:Blue
- Insulation Material:Nylon
- Inside Diameter:0.085 in

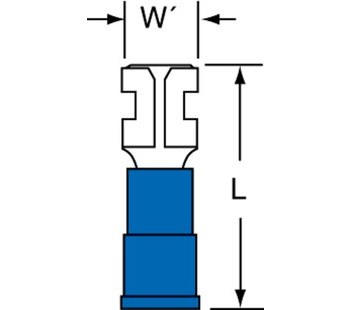

- Male Tab Width:0.187 in
- Overall Length:0.77 in
- Package Quantity:100 per bottle, 500 per case
- Case Quantity:500 per case
- Inside Quantity:100 per bottle
- Maximum Cable Insulation Outer Diameter:0.145 in
- Barrel Length Type:Butted
- Maximum Insulation Outside Diameter:0.145 in
- Minimum Conductor Leg Diameter:16 AWG
- Pad Width:0.187 in
- Tab Width:0.250 in
