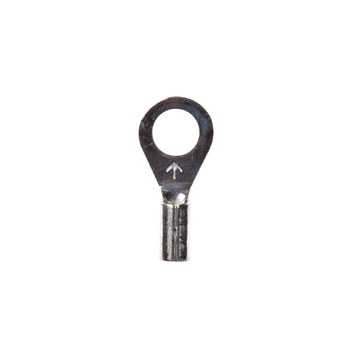

3M Scotchlok MU18-10RX Red Butted Non-Insulated Butted Ring Terminal - 0.7 in Length - 0.33 in0.33 in Wide - 0.07 in Inside Diameter - #10 Stud - 59004
051128-59004
The 3M Scotchlok red butted non-insulated butted ring terminal is sold 500 per case and is another quality product from 3M. Can be used with conductor legs with a minimum diameter of 18 awg. The overall length and width are 0.7 in x 0.33 in.
Product Specifications
- Brand:3M
- Trade Name:Scotchlok
- 3M Number:MU18-10RX
- Seam Type:Butted
- Stud Size:#10
- Color:Red
- Insulation Material:Non-Insulated
- Ring Width:0.33 in
- Inside Diameter:0.07 in
- Clearance:0.29 in
- Overall Length:0.7 in
- Package Quantity:500 per case
- Case Quantity:500 per case
- Minimum Conductor Leg Diameter:18 AWG
- Overall Width:0.33 in
