3M Scotchlok MN18BCX Red Seamless Nylon Seamless Butt Connector - 1.02 in Length - 0.125 in Max Insulation Outside Diameter - 0.062 in Inside Diameter - 58647
051128-58647
The 3M Scotchlok red seamless nylon seamless butt connector is sold 500 per case and is another quality product from 3M. The barrel itself is 0.28 in long. Can be used with conductor legs with a minimum diameter of 22 awg. Supported wire sizes are 22 awg to 18 awg. The maximum outside diameter of the insulation this seamless butt connector can work with is 0.125 in. The overall length measures 1.02 in.
Product Specifications
- Brand:3M
- Trade Name:Scotchlok
- 3M Number:MN18BCX
- Seam Type:Seamless
- Maximum Wire Size:18 AWG
- Minimum Wire Size:22 AWG
- Color:Red
- Insulation Material:Nylon
- Maximum Insulation Outside Diameter:0.125 in
- Inside Diameter:0.062 in
- Barrel Length:0.28 in

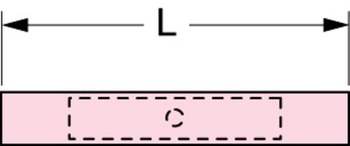

- Overall Length:1.02 in
- Package Quantity:100 per pack, 500 per case
- Minimum Conductor Leg Diameter:22 AWG
