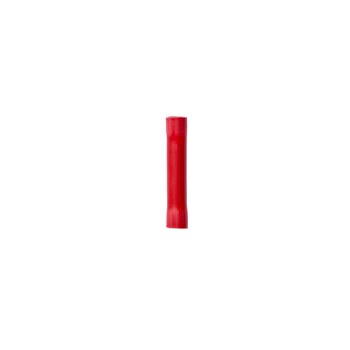

3M Scotchlok MVU18BCX Red Butted Vinyl Butted Butt Connector - 1 in Length - 0.145 in Max Insulation Outside Diameter - 0.07 in Inside Diameter - 58817
051128-58817
The 3M Scotchlok red butted vinyl butted butt connector is sold 500 per case and is another quality product from 3M. The barrel itself is 0.25 in long. Can be used with conductor legs with a minimum diameter of 22 awg. Supported wire sizes are 22 awg to 18 awg. The maximum outside diameter of the insulation this butted butt connector can work with is 0.145 in. The overall length measures 1 in.
Product Specifications
- Brand:3M
- Trade Name:Scotchlok
- 3M Number:MVU18BCX
- Seam Type:Butted
- Maximum Wire Size:18 AWG
- Minimum Wire Size:22 AWG
- Color:Red
- Insulation Material:Vinyl
- Maximum Insulation Outside Diameter:0.145 in
- Inside Diameter:0.07 in
- Barrel Length:0.25 in
- Overall Length:1 in
- Package Quantity:100 per pack, 500 per case
- Minimum Conductor Leg Diameter:22 AWG
